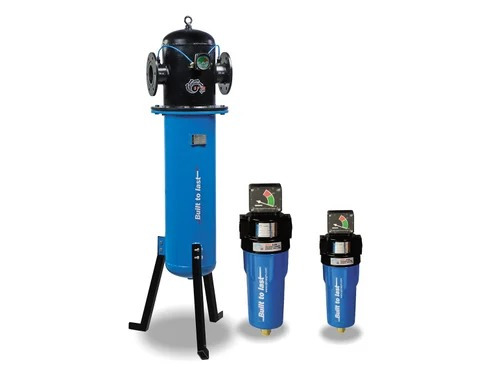

Air Line Fileters

Air Filters remove dust particles, oil, rust and other types of contaminants from compressed air.

Special Features

  • Wide range of 20 standard models.
  • Compact design
  • Low pressure drop
  • Filter housing in accordance with international standard
  • Duly tested pneumatically & hydrostatically.
  • Standard DIN or BS thread or flange connection.
  • Range available for temperature upto 60°C and pressure upto 14 kg/cm2 (g)
  • Chemically, biologically & biochemically neutral & inert
  • Design code like – ASME, IS-2825, etc.
  • High working life
  • Filter media sintered bronze & borosilicate glass fibre for filtration efficiency upto 99.98% and residual oil upto 0.01 ppm
  • Instrumentation such as auto and manual drain valve etc.

Optional Features

  • Auto drain valve
  • Special filters for alkaline, acid gases for aggressive oils
  • Differential pressure gauge

Standard Working Parameters

  • Pressure : up to 14 kg/cm2
  • Temperature : 60°C
